A universal pneumatic nailing table, Pneumatico PT-3300 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Pneumatico PT-3300 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size.  Widths may vary 35.4″-129.9″ (900-3300 mm) and the table supports lengths up to a maximum of 59.1″ (1500 mm). Only one operator is required to produce 170-200 pallets during a single 8 hour work shift.

The operator uses multiple nail guns for different sizes of nails. Each of the nail guns is suspended on an overhead roller track for operator convenience. The roller track allows the nail guns to move freely along the rail mounting system overhead. The design of the table guarantees production efficiency as well as operator’s comfort.





Technical specifications:

  • Weight: 1367 lbs (620 kg)
  • Operating pressure: up to 8 bar

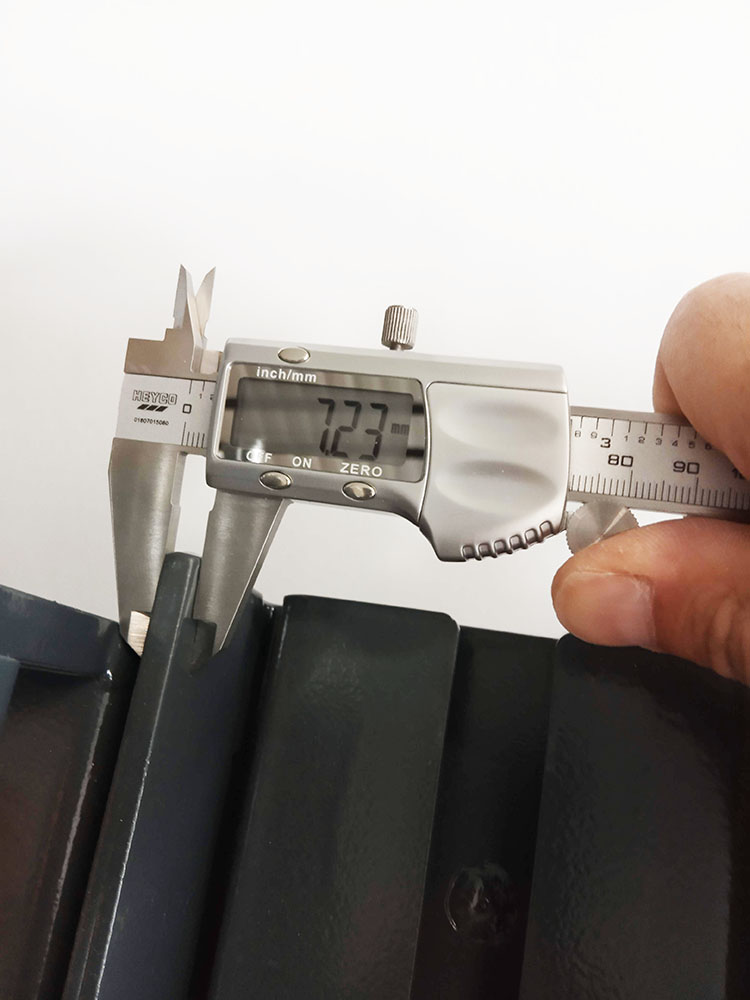

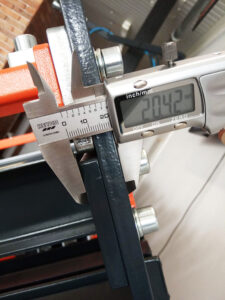

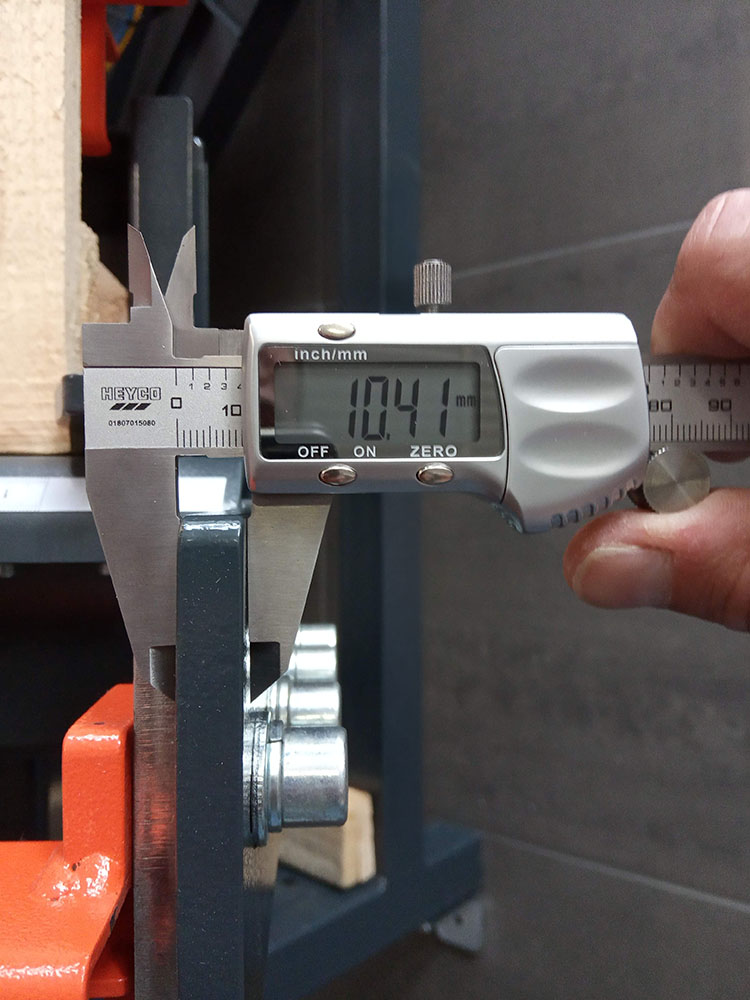

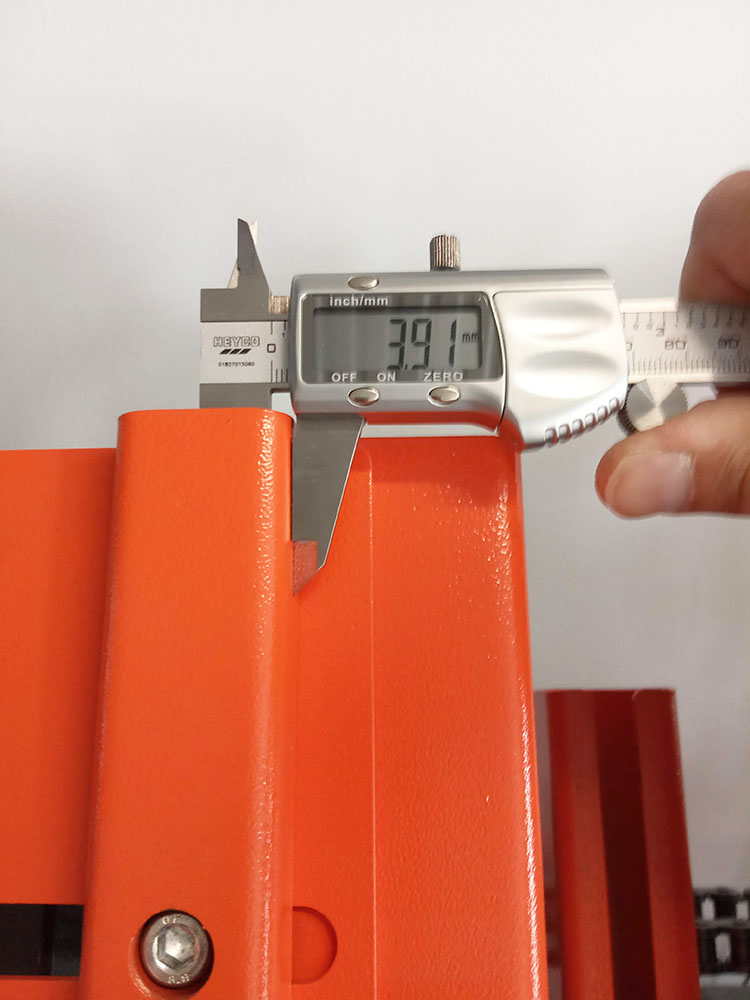

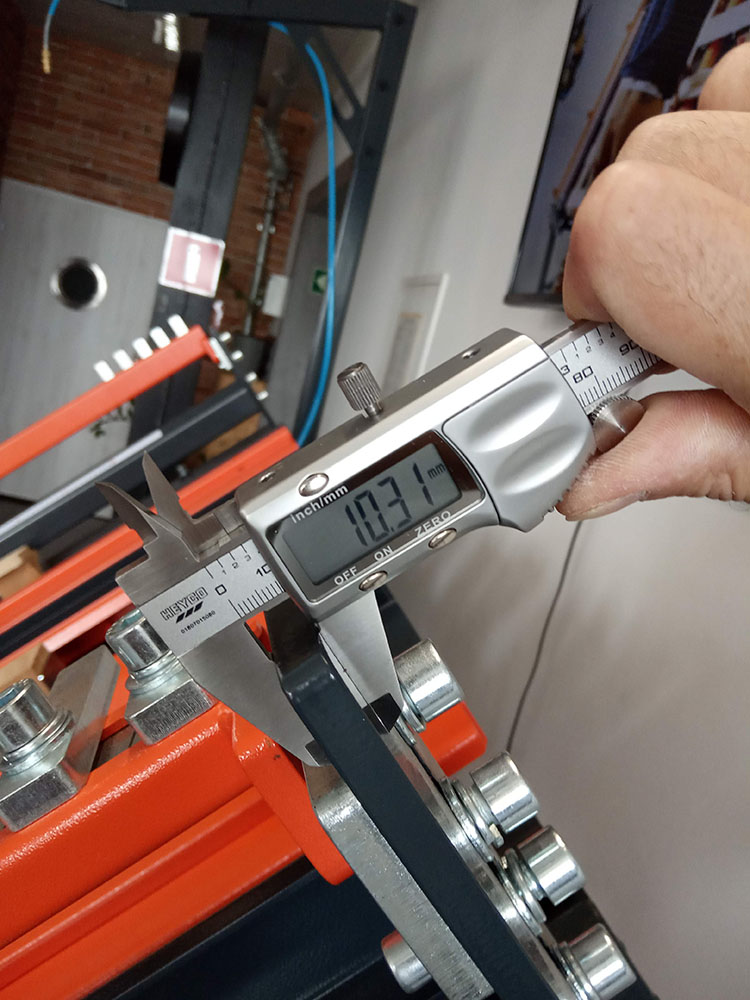

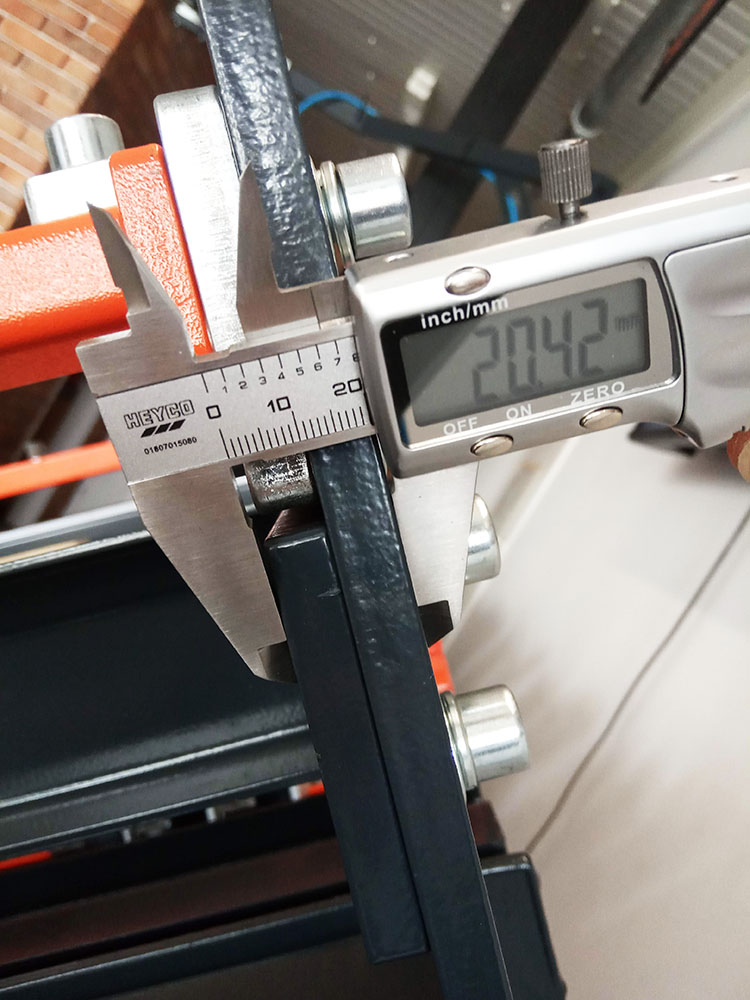

  • Material: structural steel

Dimensions of the pallets:

  • Width: 35.4″ – 129.9″ (900 – 3300 mm)
  • Length: 59.1″ (1500 mm)

External dimensions:

  • Worktop width: 146.1″ (3710 mm)
  • Table width comprising rail mounting system for balancers: 180.4″ (4582 mm)
  • Worktop height: 72.0″ (1829 mm)
  • Table height comprising rail mounting system for balancers: 106.2″ (2697 mm)

Certified industrial design: 015022247-0003

Basic components

PT-3300 BASIC
1
2
3 i 9
4 i 5
6
13
5

PT-3300 BASIC

PT-3300 BASIC

1

1

2

2

3 i 9

3 i 9

4 i 5

4 i 5

6

6

13

13

5

5

Additional components

8
7
6 i 18
Balancer TECNA 9321
Balancer TECNA 9322
Gwoździarka Stanley Bostitch N80CB-1
Gwoździarka Stanley Bostitch N58C-1-E
Spiral polyurethane hose with fittings
Pneumatic grip for nailer
PU Spiral Tube for TECNA Balancers

8

8

7

7

6 i 18

6 i 18

Balancer TECNA 9321

Balancer TECNA 9321

Technical specifications:

  • Load bearing capacity: 2 – 4 kg
  • Rope length: 2,0 m



Description:

  • Cast aluminium body
  • Stainless steel rope
  • Adjustable capacity by means of a knob
  • Rubber stroke limiter
  • Coated with antifriction material
  • Polyamides thimble preventing hook friction

Balancer TECNA 9322

Balancer TECNA 9322

Technical specifications:

  • Load bearing capacity: 4 – 6 kg
  • Rope length: 2,0 m



Description

  • Cast aluminium body
  • Stainless steel rope
  • Adjustable capacity by means of a knob
  • Rubber stroke limiter
  • Rope coated with antifriction material
  • Polyamides thimble preventing hook friction

Gwoździarka Stanley Bostitch N80CB-1

Gwoździarka Stanley Bostitch N80CB-1

Technical specifications:

  • Tool weight: 3,87 kg
  • Operating pressure: 5 – 7 bar
  • Air consumption: 1,9 l/ shot
  • Magazine capacity: 250 – 300 nails



Dedicated nails:

  • Nails length: 38 – 80 mm
  • Nails diameter: 2,5 – 3,3 mm

Gwoździarka Stanley Bostitch N58C-1-E

Gwoździarka Stanley Bostitch N58C-1-E

Technical specifications:

  • Tool weight: 2,68 kg
  • Operating pressure: 5 – 7 bar
  • Air consumption: 1,0 l/ shot
  • Magazine capacity: 300 – 350 nails



Dedicated nails:

  • Nails length: 25 – 55 mm
  • Nails diameter: 2,03 – 2,5 mm

Spiral polyurethane hose with fittings

Spiral polyurethane hose with fittings

Technical specifications:

  • Diameter: 12 x 8 mm
  • Length: 5 m

Pneumatic grip for nailer

Pneumatic grip for nailer

Dedicated to nailers:

  • MAX CN55, CN80
  • Stanley Bostitch N58C, N80CB

PU Spiral Tube for TECNA Balancers

PU Spiral Tube for TECNA Balancers

P931X and P932X are kits exclusively designed to feed the suspended pneumatic tools with compressed air. The material is light and ergonomic. The rope is placed inside the spiral tube. The grips might be installed to both old and new TECNA balancers without any interference in its internal housing.



Kit P931X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 10 x 6,5 mm ¼” external thread
• One angular rotary plug nipple 10 x 6,5 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread



Kit P931X fits:
• TECNA 9311, 9312, 9313



Kit P932X includes:
• Polyurethane spiral tube without fitting
• A set of steel galvanized grips
• One straight plug nipple 12 x 8 mm ¼” external thread
• One angular rotary plug nipple 12 x 8 mm ¼” external thread
• One male Quickcoupling ¼” internal thread
• One female Quickcoupling ¼” internal thread



Kit P932X fits:
• TECNA 9320, 9321, 9322, 9323
• TECNA Light 4, Light 6, Light 8

We offer a standard kit that includes:

  • Pneumatico PT-3300 table together with pneumatic accessories, i.e. valves, actuators
  • 2 Control levers
  • Central air regulator
  • 2 FLR Air units (Filter Regulator Lubricator. Possibility to set different pressure for each nailer)
  • 6 Anvils to bend AN6 nails
  • 3 Templates to produce “ bottoms” of P9 pallets

Examples of pallet types that can be produced with Pneumatico PT-3300:

Four way entry - GMA pallet
two way entry - wing type
two way entry - reversible
two way entry - close boarded, no base board
four way entry - wing type
four way entry - perimeter base
four way entry - open boarded, 3 base
four way entry - close boarded, perimeter base
four way entry - close boarded, 3 base
1200 x 800 mm
600 x 800 mm
Easy to use One operator can build 170-200 pallets within 8 hours
Compact design Total footprint 57.80 ft² (5.37 m²)
Universal Adjustable worktop allows production of:

  • Block pallets (including EUR pallets) up to 15 blocks
  • Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs

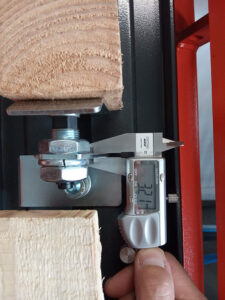

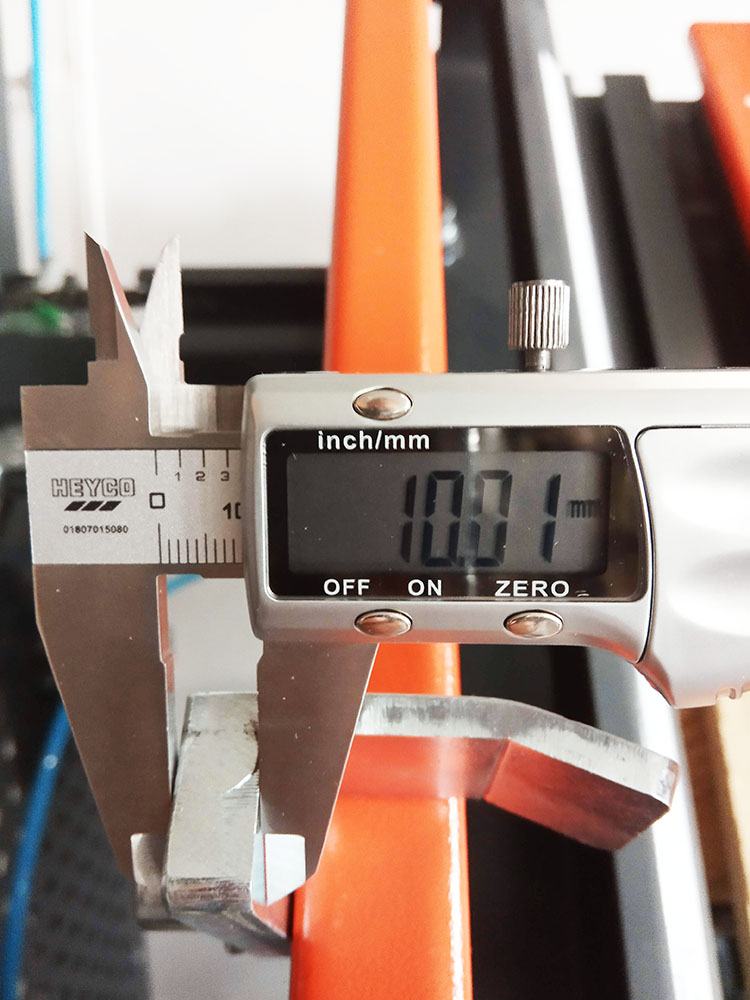

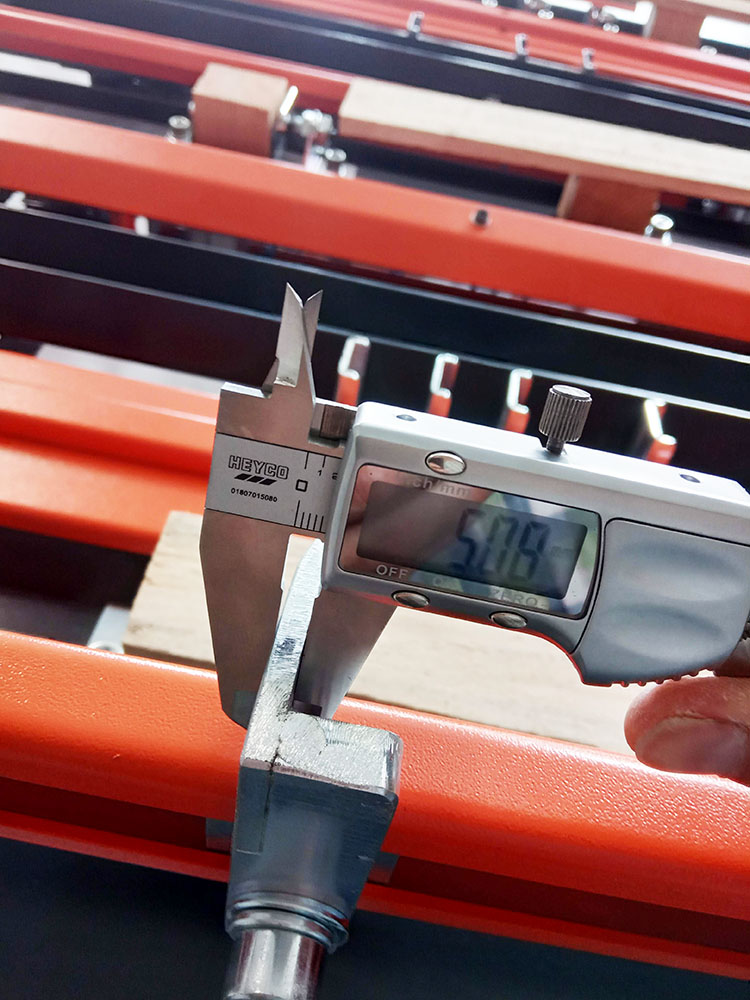

Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique
  • Diagonal table adjustment reduces work by 50%
  • Only 2 Allen keys required to adjust the table
Certified industrial design 015022247-0003
